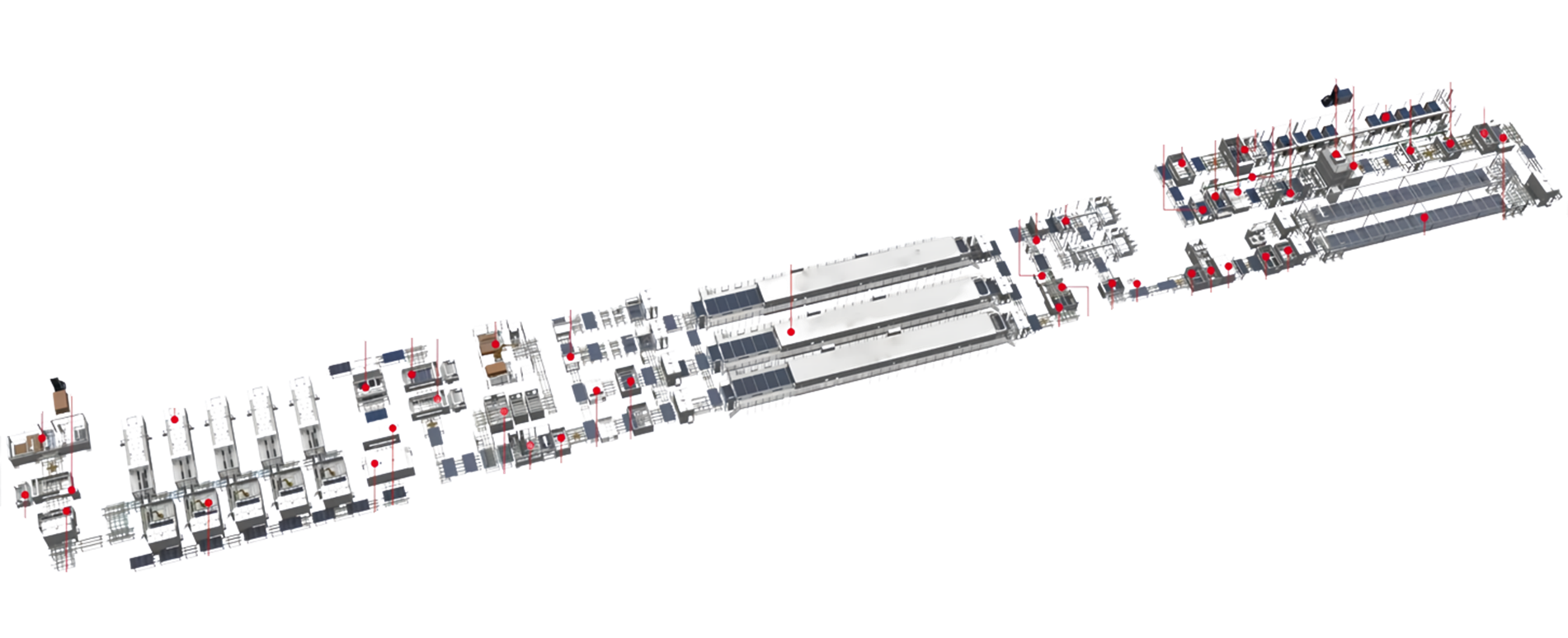

Turnkey Line

Turnkey Line
Solar

600 MW / Year

Modules

190 Modules/Hour

Calendar

330 Days/Year

Application

Application: 5BB-12BB; M6 - M12

Workers

20-30 Workers

Noise

Working Noise ≤70dBA

Production Steps

1. Cell Cutting
2. String Soldering
3. Layup
4. Busbar Soldering
5. Taping
6. EL and Visual Testing
7. Laminating
8. Trimming
9. Framing
10. Backsheet Gluing
11. Box Connecting
12. Curing
13. Cleaning
14. Hi-Pot Testing
15. IV Testing
16. EL and Visual Testing
17. Labeling
18. Angle Wrapping
19. Sorting

Machines

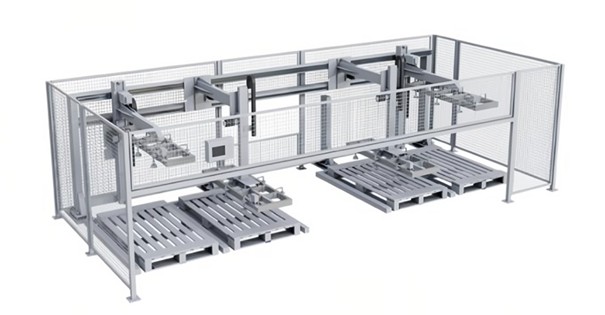

Automatic Glass Machine
Automatic Glass Machine

Automatically loads, positions, and transports glass for rapid supply.

Learn More

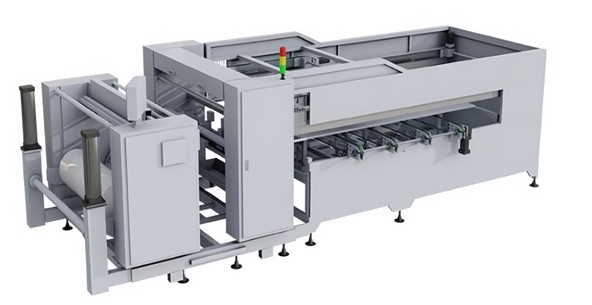

EVA Cutting and Layup Machine
EVA Cutting and Layup Machine

Directly mixes tailings with new materials through hot melting.

Learn More

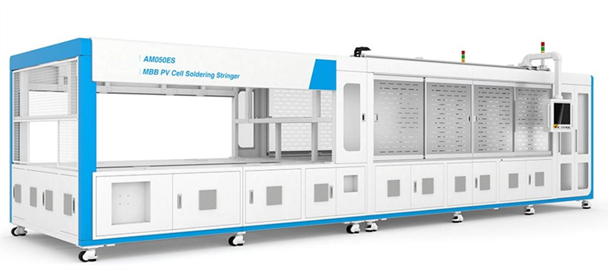

Stringer Machines
Stringer Machines

Uses robotic systems to position, grab, and place solar cells efficiently.

Learn More

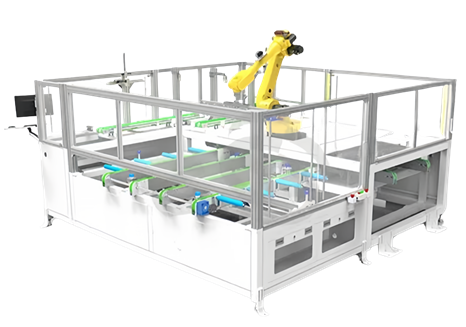

Robot String Layup Machine
Robot String Layup Machine

Uses a robot to grab cell strings with high positioning precision.

Learn More

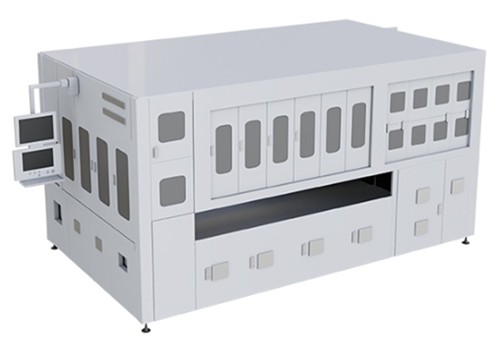

Automatic Bussing Machine
Automatic Bussing Machine

Adopts induction welding for 5BB-12BB solar cells of 156-210mm.

Learn More

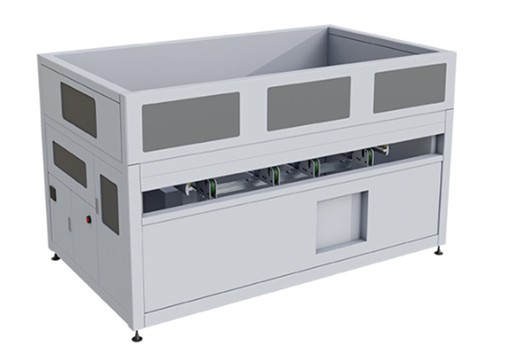

Automatic String Taping Machine
Automatic String Taping Machine

Adjusts tape width and length with high precision.

Learn More
EVA/TPT Backsheet Cutting and Layup Machine
EVA/TPT Backsheet Cutting and Layup Machine

High precision cutting and layup of second EVA film and TPT backsheet.

Learn More

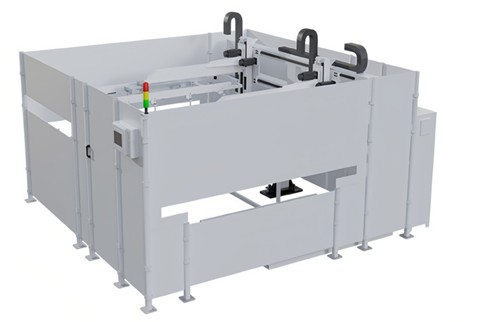

Second Glass Loading & Placement Machine
Second Glass Loading & Placement Machine

Designed for dual-glass solar module production with adaptable features.

Learn More

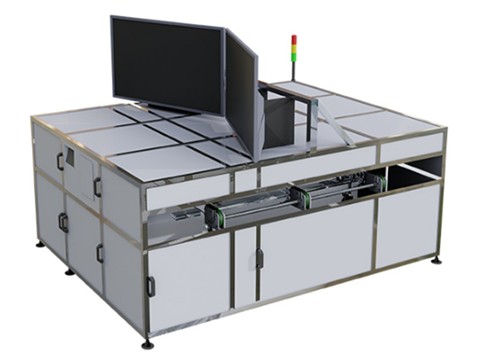

EL & VI Tester
EL & VI Tester

Detects panel defects manually or using AI, including cracks and black spots.

Learn More
Automatic Edge Taping Machine
Automatic Edge Taping Machine

Automatic tape edge banding for dual-glass solar modules with adaptable tape features.

Learn More

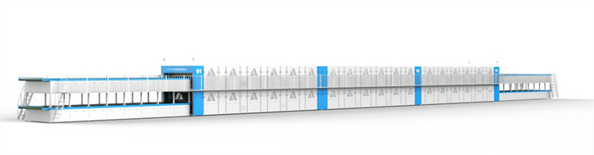

Laminator
Laminator

A high-quality solar panel lamination machine that can be customized to customer needs.

Learn More

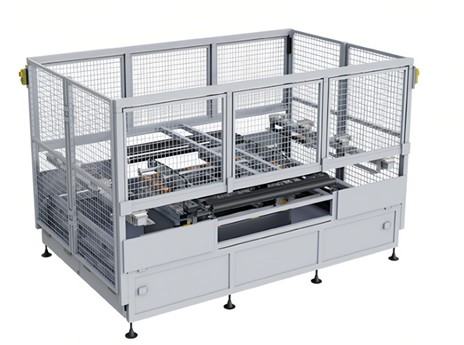

Automatic Edge Trimming Machine
Automatic Edge Trimming Machine

Removes burrs and exceeds materials from PV module edges after lamination.

Learn More

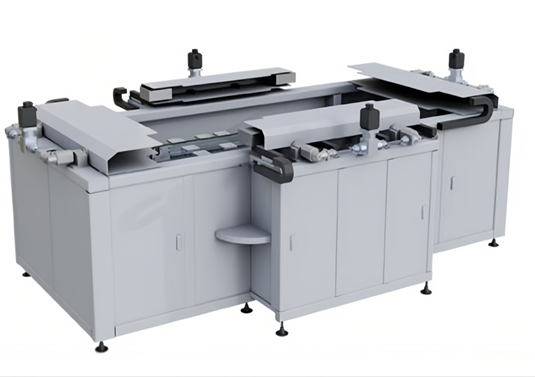

Automatic Framing Machine
Automatic Framing Machine

Automatic silicon dispensing and assembling of solar panel frames with high precision.

Learn More

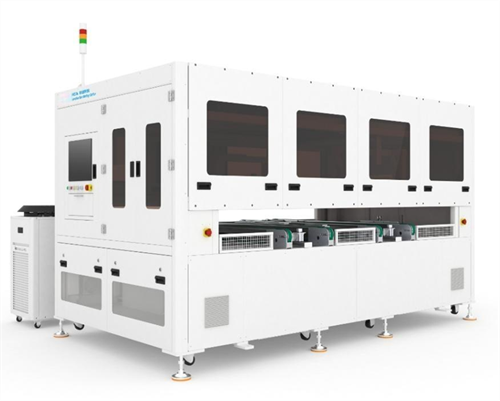

Auto J-Box Soldering Machine
Auto J-Box Soldering Machine

Used for automatic soldering of PV junction boxes with rapid and accurate capabilities.

Learn More

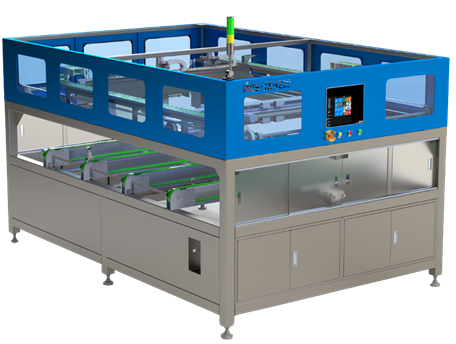

Automatic J-Box Potting Machine
Automatic J-Box Potting Machine

Automated glue potting for PV junction boxes, with advanced conveying and positioning.

Learn More

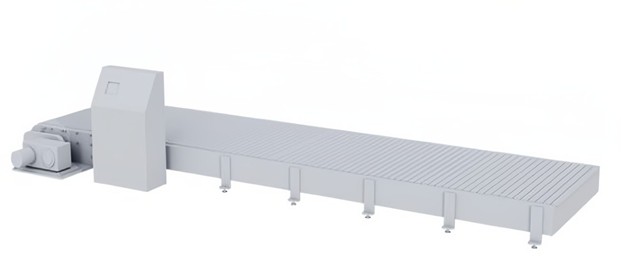

Curing Room
Curing Room

Uses motor and sprocket-driven chain for controlled material transmission.

Learn More

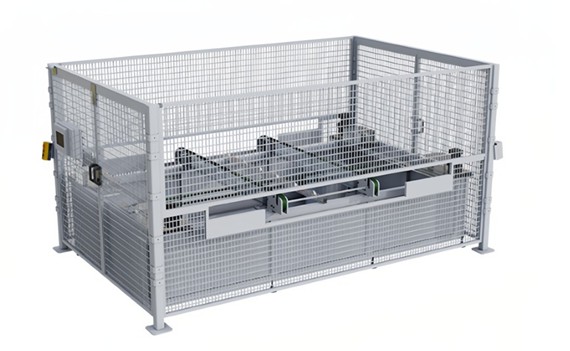

Automatic Corner Grinding Machine
Automatic Corner Grinding Machine

Automates grinding for solar panel frame corners with high precision.

Learn More

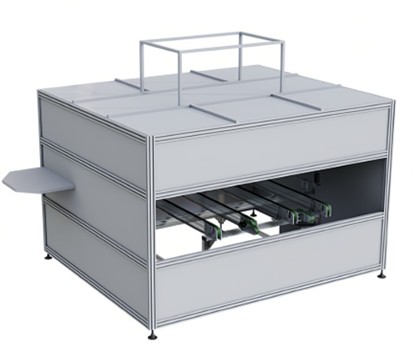

Sun Simulator / IV Tester
Sun Simulator / IV Tester

Provides standard solar panel testing for power and current measurement.

Learn More

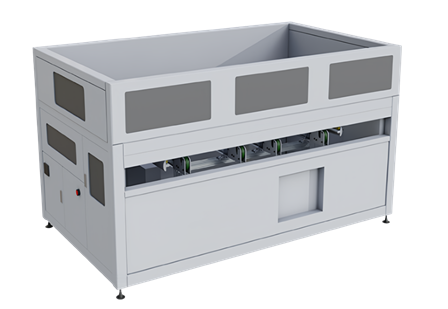

HIPOT Tester
HIPOT Tester

Tests dielectric withstand and electrical insulation of PV modules.

Learn More
Automatic Labelling Machine
Automatic Labelling Machine

Features 2-3 working heads for labeling tags, codes, and barcodes.

Learn More

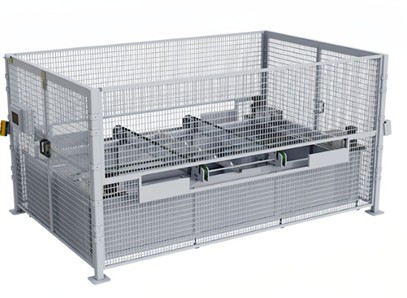

Corner Protector Inserting Machine
Corner Protector Inserting Machine

Used for inserting paper, kraft paper, and cardboard corner protectors.

Learn More

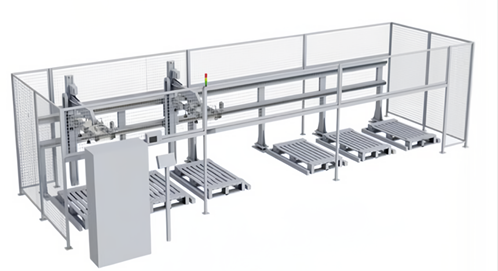

Sorting Machine
Sorting Machine

Automatic module sorter for sequencing PV modules with various sorting methods.

Learn More
